Subgroup information

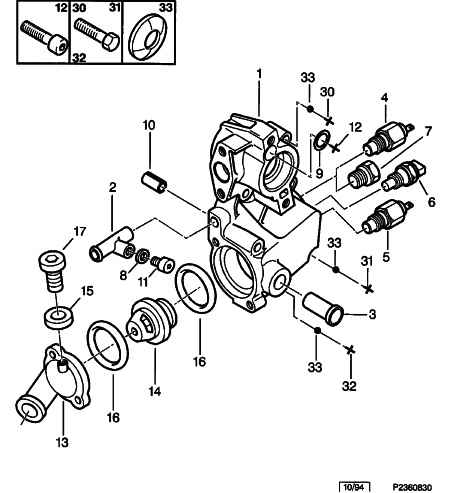

Code: 026906236083
Name: OUTLET TANK SWITCH PROBE
Date: 22.10.2011
Application: PETROL And 1,998L And INJECTION
    Code Part number Qty Name Applicable Supplier
    01 1336 70 01 ENGINE WATER OUTLET TANK Until OPR 04952
    01 1336 C6 01 ENGINE WATER OUTLET TANK Since OPR 04953
    02 91519407 01 ENGINE WATER OUTLET Until OPR 04952
    02 1342 04 01 SOCKET TOOL,
    8X10
    03 91539795 01 SOCKET TOOL Until OPR 04952
    03 1341 63 01 SOCKET TOOL,
    DIAM 20    		 Since OPR 04953
    04 0242 85 01 SENSOR ENGINE MANAGEMENT,
    14X1,25 - 118 DEG,
    BLUE
    04 1338 55 01 WATER TEMPERATURE SENSOR,
    14X125 HT 56,5 2V,
    MAROON,
    START-UP OF THE FANS    		 HEATER
    04 1338 56 01 TEMPERATURE SENDING UNIT,
    MAROON    		 TURBO-INJECTION EXCHANGER
    05 0242 76 01 SENSOR ENGINE MANAGEMENT,
    14X1,25-48
    05 1338 09 01 THERMISTOR,
    DIAM 14X125-110 DEG,
    BLUE,
    INSTRUMENT PANEL COOLANT TEMP INFO    		 HEATER
    05 1338 34 01 TEMPERATURE SENDING UNIT,
    BLUE    		 TURBO-INJECTION EXCHANGER
    06 1920 C4 01 SENSOR ENGINE MANAGEMENT,
    DIAM 12X150
    06 1920 Q2 01 SENSOR ENGINE MANAGEMENT TURBO-INJECTION EXCHANGER
    07 1336 32 01 PLUG,
    14X125
    08 1339 78 01 FILTER DRAIN SCREW GASKET,
    10X6,2
    09 1339 64 01 METAL SEAL
    10 6968 40 02 PIN,
    10X13
    11 1306 29 01 ENGINE WATER DRAIN SCREW,
    DIAM 6X100-18
    12 1336 33 01 SOCKET CHEESEHEAD SCREW,
    DIAM 7X100-55
    13 1336 G0 01 ENGINE WATER OUTLET Until OPR 04982
    13 1336 A1 01 ENGINE WATER OUTLET Since OPR 04983
    14 1338 11 01 ENGINE WATER THERMOSTAT,
    89 DEG
    14 1338 37 01 ENGINE WATER THERMOSTAT,
    82 DEG (83 DEG)    		 Since OPR 05901
    15 1339 78 01 FILTER DRAIN SCREW GASKET,
    10X6,2
    16 1339 10 02 ENGINE WATER THERMOSTAT GASKET,
    DIAM INT 53,5    		 Until OPR 04982
    16 1340 30 01 ENGINE WATER THERMOSTAT GASKET,
    DIAM 53,5    		 Since OPR 04983
    17 1306 29 01 ENGINE WATER DRAIN SCREW,
    DIAM 6X100-18
    30 6921 28 03 HEX HEAD CAPSCREW,
    DIAM 7X100-40
    31 6921 31 01 HEX HEAD CAPSCREW,
    7X100-55
    32 6921 15 02 HEX HEAD CAPSCREW,
    DIAM 7X100-75,
    COEF 3 FROM 4953    		 Until OPR 04952
    32 6921 15 03 HEX HEAD CAPSCREW,
    DIAM 7X100-75
    33 6962 04 03 FLEXIBLE WASHER,
    6X12,2-0,5
