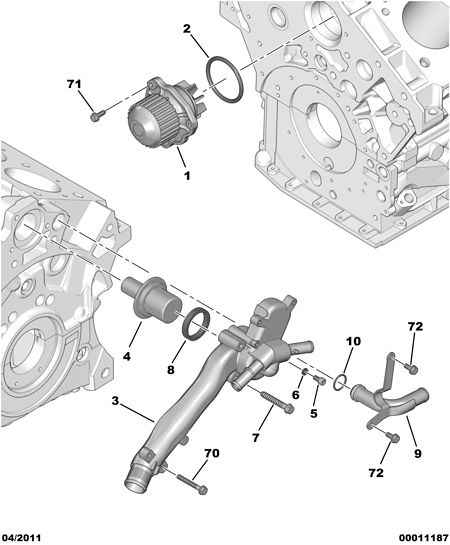

Parts
| Code | Part number | Qty | Name | Applicable | Supplier | |
|---|---|---|---|---|---|---|
| 01 | 1201 E9 | 01 | WATER PUMP | Until OPR 08554 | ||
| 01 | 1201 F6 | 01 | WATER PUMP | Since OPR 08555 | ||
| 01 | E111723 | 01 | EM:COOLANT PUMP PSA | Since OPR 08555 | ||
| 01 | VWP883 | 01 | M:COOLANT PUMP PSA | Since OPR 08555 | ||
| 02 | 1206 C8 | 01 | WATER PUMP GASKET | |||
| 03 | 1336 S0 | 01 | ENGINE WATER INTAKE TANK | |||
| 03 | 1336 S1 | 01 | ENGINE WATER INTAKE TANK | |||
| 04 | 1338 73 | 01 | ENGINE WATER THERMOSTAT | |||
| 05 | 1306 29 | 01 | ENGINE WATER DRAIN SCREW, DIAM 6X100-18 |
|||
| 06 | 1339 78 | 01 | FILTER DRAIN SCREW GASKET, 10X6,2 |
|||
| 07 | 1336 L1 | 03 | SCREW WITH BASE, DIAM 8X125-55 |
|||
| 08 | 1340 42 | 01 | ENGINE WATER THERMOSTAT GASKET | |||
| 09 | 1205 18 | 01 | WATER INLET HOSE | |||
| 10 | 1208 15 | 01 | O-RING | |||
| 70 | 6922 75 | 01 | SELF LOCKING SELF-TAP SCREWS, DIAM 6X100-50 |
|||
| 71 | 6922 H3 | 03 | SELF LOCKING SELF-TAP SCREWS, DIAM 6X100-25 |
|||
| 72 | 6923 77 | 02 | SELF LOCKING SELF-TAP SCREWS, DIAM 6X100-16, Replaced by 6923 H0 |
