Parts

• Model
• Partner (m59)
• Body: without parameters / Engine: 2.0 HDi 90
• mechanical
• ABS/ASR/ESP
• SPEED SENSOR

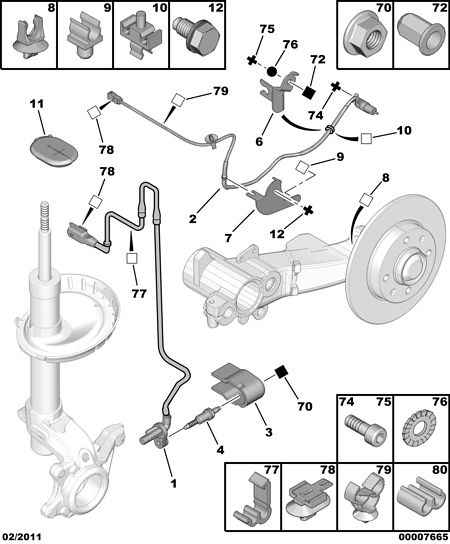

Subgroup information

Code:	M59F445J60A
Name:	SPEED SENSOR
Date:	22.10.2011
Supplier:	BOSCH
Application:	WITH ABS BRAKES

Code	Part number	Qty	Name	Applicable	Supplier
01	4545 45	02	WHEEL ABR SENSOR, RIGHT, AV	ESP BOSCH 5 7
01	4545 C8	02	WHEEL ABR SENSOR, AV	ESP BOSCH 8 0
01	4545 C8	02	WHEEL ABR SENSOR, AV	8 1 BOSCH ESP
02	4545 A4	02	WHEEL ABR SENSOR, AR	ESP BOSCH 5 7
02	4545 C9	01	WHEEL ABR SENSOR, LEFT, AR	ESP BOSCH 8 0
02	4545 C9	01	WHEEL ABR SENSOR, LEFT, AR	8 1 BOSCH ESP
02	4545 E0	01	WHEEL ABR SENSOR, RIGHT, AR	ESP BOSCH 8 0 And Until OPR 10478
02	4545 E6	01	WHEEL ABR SENSOR, RIGHT, AR	ESP BOSCH 8 0 And Since OPR 10479
02	4545 E6	01	WHEEL ABR SENSOR, RIGHT, AR	8 1 BOSCH ESP
03	4547 79	02	TOOTHED WHEEL ABR PROTECTOR, AV
04	4548 29	02	GEAR-BOX HOUSING COLUMN SCREW, 6X100-23	ESP BOSCH 5 7
04	4548 39	02	SENSOR FIXING SCREW ABR, 6X100-24	ESP BOSCH 8 0
04	4548 39	02	SENSOR FIXING SCREW ABR, 6X100-24	8 1 BOSCH ESP
06	4547 42	01	BRACKET, LEFT
06	4547 43	01	BRACKET, RIGHT
07	4547 K1	01	BRACKET, LEFT	Until OPR 10450
07	4547 K2	01	BRACKET, RIGHT	Until OPR 10450
08	4548 48	02	ABS SENSOR FIXING CLIP, 1 DIAM 12
09	6439 68	02	SUPPORT CLIP, 1T7
10	4548 40	01	HOG RING, 3T 4,8-4,8-6
11	6547 CJ	02	WIRING SHEATH, DIAM 55X80	Until OPR 10556
11	4828 07	02	WIRING SHEATH, DIAM 40	Since OPR 10557
12	5037 39	02	SELF LOCKING SELF-TAP SCREWS, 8X125-16
70	6936 A0	02	BASE NUT, 6X100-6-10
72	6941 98	02	PRESSURE NUT, 6 X 100 - 16 - 13
74	6913 10	02	SOCKET CHEESEHEAD SCREW, DIAM 6X100-20, Replaced by 6913 06
75	6913 06	02	SOCKET CHEESEHEAD SCREW, DIAM 6X100-16
76	6962 94	02	TOOTH SPRING WASHER, 6X11-0,7
77	6997 E4	02	WIRING HARNESS CLIP, DIAM 4,55-6,3
78	6990 A3	02	HOG RING, 12,2X6,2
79	6992 A6	01	HOG RING, DIAM 6-12-30
80	6995 CT	05	HOG RING, 2T 4,3
